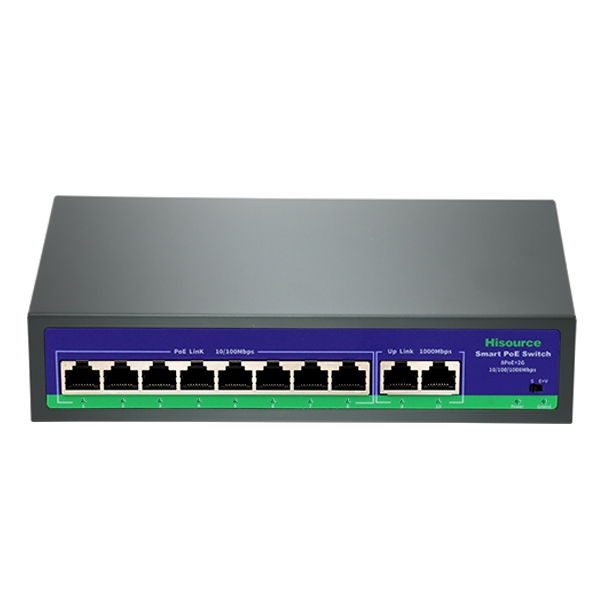

Hi-F0820GBL-C POE Switch is designed and developed by our company. It can meet the demand of POE. It uses the latest high-speed Ethernet switching chip, has ultra-high backplane bandwidth design, and has extremely fast data processing capability and smooth data transmission performance. It has 8* RJ45 port，2*RJ45 1000Mbps uplink port. 8*RJ45 port support IEEE 802.3af/at, each port max. power supply reached 30W, the whole power is 120W. It can automatically detect and identify PD device that meets the IEEE 802.3af/at, support the priority mechanism.

Excellent port performance

l  Supply 8*10/100Mpbs RJ45 self-adaption, high-speed forwarding and non-packet loss RJ45 port.

l  Supply 2*10/100/1000Mpbs RJ45 uplink port.

l  All ports supported by MDI/MDIX auto flip and self-negotiation. Support IEEE802.3X Full-duplex and backpressure for half-duplex mode.

Excellent POE power supply performance

l  8*10/100Mpbs RJ45 port support POE+，meets the requirements for security monitoring, teleconference system, and wireless coverage.

l  It meets the IEEE 802.3af/at, the whole power is 120W，each port max. power supply reached 30W.

l  Detect the PD devices automatically and supply the power without damaging non-POE devices.

Two modes of operation

l  Normal Mode ----All ports communicate freely，suitable for common data transmission environment.

l  Long distance transmission mode--- Support 250m long distance transmission，suitable for long distance transmission.
